Bayonet thermocouple

J-Type

Measuring head diameter 5-8mm Inside of the bayonet 10-14mm Insulated stainless steel cable 2000mm

Shovel sensor

J-Type

Insulated measuring point. Stainless steel cable 2000mm.

Underlay sensor sheet

J-Type

Insulated measuring point. Welded to the ground. Stainless steel.

Kabel 2000mm.

Band sensor

J-Type

Diameter: 30-80mm Welded to the ground. Stainless steel cable 2000mm.

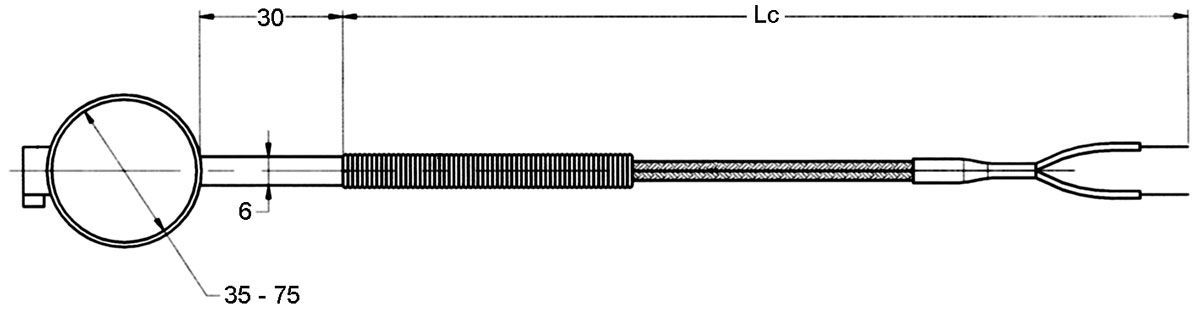

Disc thermocouple

J-Type

Welded to the ground. Stainless steel cable 2000mm. Hole diameter 5mm.

Thermocouple for nozzles

J-Type

Insulated measuring point. Stainless steel cable 2000mm.

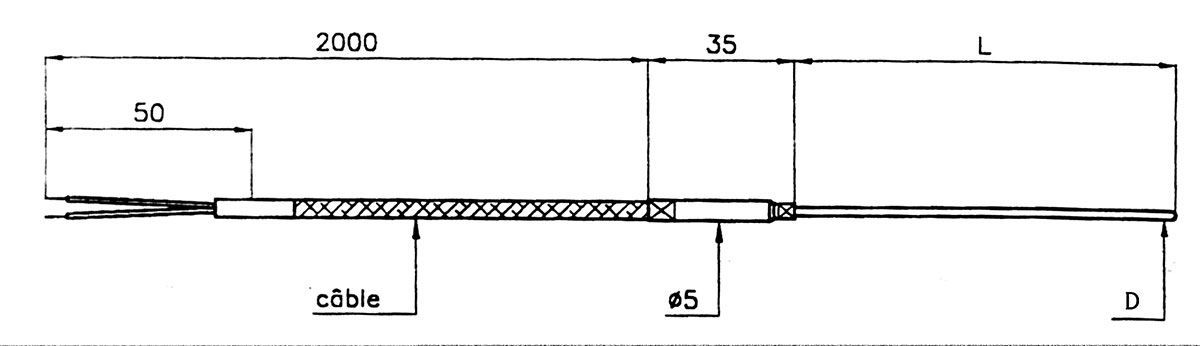

Flexible sensor

J-Type

Diameter 1 - 3 mm, various lengths, stainless steel cable 2 meters, insulated measuring point

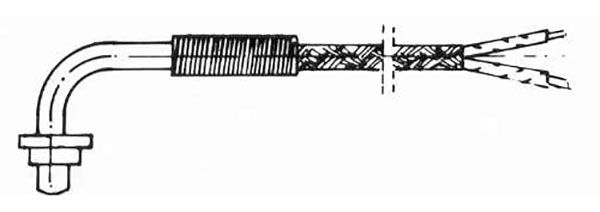

90° sensor

J-Type

Insulated M6 thread 90° bend

2000mm cable

Sensor for

Sandretto, Mir, Negri Bossi SGM

J-Type, ø 6mm Cable 2000mm



Sensor for

 Netstal SGM

J-Type, ø 5mm Cable 2000mm



Sensor for

 Netstal SGM

J-Type, ø 5mm Cable 2000mm



Sensor for

Klockner SGM J-Type, thread M8x1.25 cable 2000mm



Sensor for

 BILLION SGM , J-Type

M6 Length 8mm, Cable 2000mm



Sensor for

Krauss Maffei and Klockner SGM J-Type, cable 2000mm



Sensor for

Krauss Maffei SGM

J-Type, Cable 2000mm

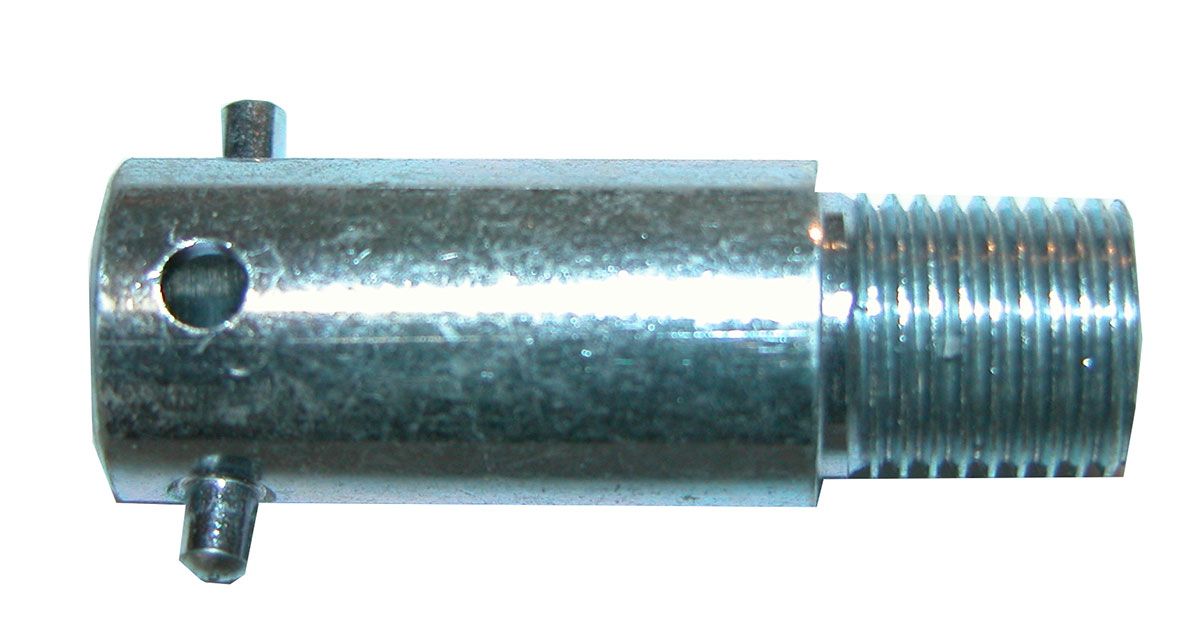

Bayonet socket

various versions
