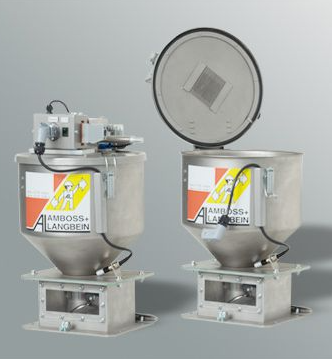

Conveyor separator Z-KR series
- Suitable for cleanroom conditions
- Ideal for medical applications
- Patented material closure
- Filterless dust extraction
- Ideal for pourable, free-flowing bulk materials
Conveyor made of stainless steel for small quantities of 0.8 liters
Storage on the injection molding machine: 150 - 400 g
Technical data:
- Diameter: 100 mm
- Height: approx. 350 mm
- Contents: 0.8 l
- Operating method: cone
- Feed rate: max. 25 kg/h
Conveyor made of stainless steel for small quantities in the size 1.6 liters
Storage on the injection molding machine: 300 - 800 g
Technical data:
- Diameter: 100 mm
- Height: approx. 350 mm
- Contents: 1.6 l
- Working method: cone
- Feed rate: max. 25 kg/h
Conveyor made of VA stainless steel for small quantities in the size 3.0 liters
Storage on the injection molding machine: 800 - 2,000 g
Technical data:
- Diameter: 160 mm
- Height: approx. 680 mm
- Capacity: 3 l
- Working method: cone
- Conveying capacity: max. 120 kg/h
Conveyor separator ZF series
- For pourable, free-flowing granular materials
- Made of V2A
- ZF conveyor separator suitable for series production
- Filterless
- Filtered, suitable for every requirement
- Self-adjusting
- Storage between 0.2 kg and 20 kg on the machine
Conveyor separator Z-F10
Technical specifications: •Diameter: 300 mm •Height: approx. 550 mm •Capacity: 10 l •Flow rate: max. 300 kg/h
Conveyor separator Z-F20
Technical specifications: •Diameter: 300 mm •Height: approx. 750 mm •Capacity: 20 l •Flow rate: max. 650 kg/h
Conveyor separator Z-F40
Technical specifications: •Diameter: 300 mm •Height: approx. 950 mm •Capacity: 30 l •Conveying capacity: max. 2,000 kg/h
