Granulate

Loaders for granules

Individualized electric loader equipment to suite specific customer requirements


Amboss+Langbein offers a variety of electric hopper loaders depending on the customer’s needs and production requirements. Diverse types and quantities of materials can be fed using the appropriate equipment type. Our versatile loaders can feed minimum, normal or large quantities, and can handle dust-containing materials.


At Amboss+Langbein, we offer minimum-quantity vacuum loaders (200 grams on a production machine) with transportation rates of up to 120 kg. Likewise Amboss+Langbein can guarantee conveyance for thermo and duroplastics of 30 metres horizontally and six metres vertically – in “silent” mode below 75 dB(A).


All hopper loader systems are manufactured using V2A stainless steel. The high surface quality allows for quick and thorough cleaning. An optional foldable motor allows access for direct cleaning of the equipment.


  • Micro injection moulding
  • Minimum-quantity loader with material storage on the production equipment (about 50 grams)
  • Available as Venturi system or with independent external filter

  • Z-KR 230 variant with external filter motor module
  • Single-phase hopper loader made of V2A stainless steel (1.4301)
  • Extremely small amounts, trickling, free-flowing bulk materials, up to 15 kg/h
  • Suitable for clean rooms, ideal for medical applications

  • Material throughput of 10 - 120 kg/h
  • Suitable for clean rooms

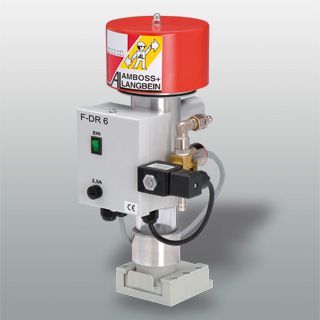

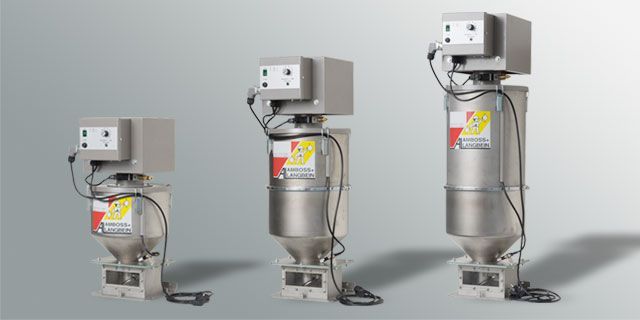

Device type            F10L     F20L     F40L     Z-KR2-230VL     FDR6

Content (l)                  10         20          40                25                  6

Performance (kg/h)    50         58        120                25                  6

Connection                            <<   240V AC  >>                           6bar

Pulfer

Conveyors for free-flowing powders

Customized electric conveyors according to customer requirements


Amboss+Langbein offers various series of electric conveyors, depending on customer requirements and production needs. A wide variety of materials and quantities can be conveyed with the corresponding device types. The various conveyors can transport small, normal or large quantities and also convey dusty materials.


This makes it possible to achieve very small suction conveying volumes (200 grams on a production machine) of up to 120 kilograms per hour. A+L guarantees conveying distances for thermoplastics and thermosets of 30 meters horizontally and six meters vertically - in “whisper” mode below 75 dBA.


All conveyors are made of V2A stainless steel. The high surface quality allows quick and thorough cleaning. An optional, foldable motor allows cleaning directly at the production machine.

  • Powders with a grain size of up to 15 µ can be safely transported via the vacuum system
  • Self-cleaning filters in alternating use during the filling process
  • Large outlet opening Ø 120 mm
  • Areas of application in the chemical and plastics industries
  • Designed in V2A stainless steel (1.4301)
